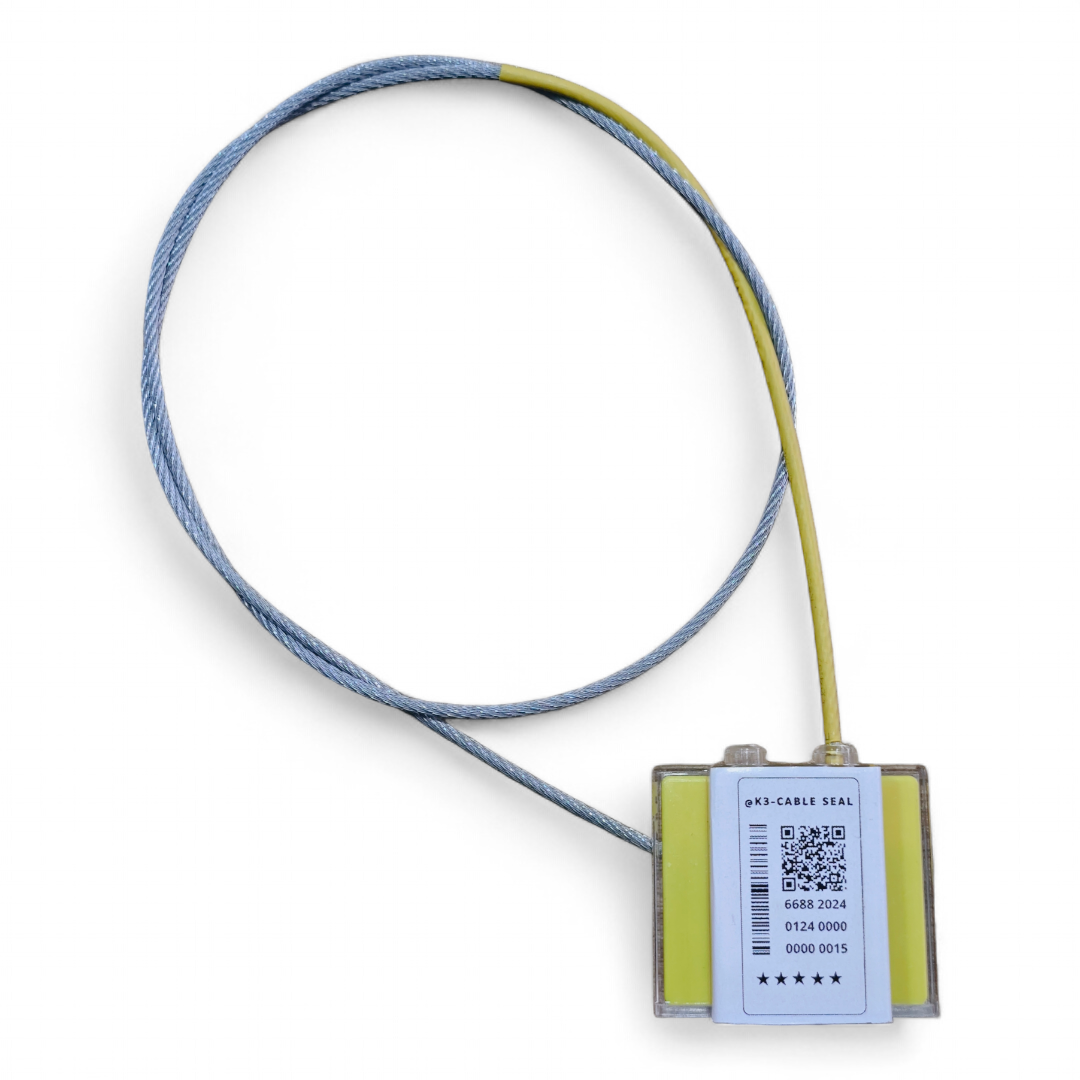

Discover Three-State RFID Wire Seal

The Three-State RFID Wire Seal is a high-security, ISO17712 certified seal with a 3.5mm wire diameter and UHF RFID technology, ideal for logistics and cargo tracking. It features tamper-proof detection, customizable memory (TID/UID 96bit, EPC 96bit+), and a 500cm reading range. Built with durable ABS plastic housing and galvanized steel wire, it's perfect for securing containers, luggage, and transition boxes.

Three-State RFID wire E-Seal - Technical Specification:

Characteristics:

The Three-State RFID Wire Seal features a robust 3.5mm wire and UHF RFID technology, offering real-time tamper detection with a unique global ID. It is a cost-effective, high-security solution designed for container, cargo, and logistics management in demanding outdoor environments.

Physical Characteristics:

Wire Diameter: 3.5mm.

Material: High-strength metal wire with a durable plastic/metal locking body.

Seal Length: Customizable length depending on application needs.

Color: Available in multiple colors (customizable for branding or identification).

Status Indication: Three-state EPC status (tampered, intact, in transit).

Data Retention: 10+ years.

RFID Technology:

Frequency Range: UHF (860-960 MHz).

Standard Compliance: EPCglobal Class 1 Gen 2, ISO 18000-6C.

Chip Type: EPC Class 1 Gen 2 RFID chip.

Read Distance: Up to 10 meters (depending on reader and environment).

Unique ID: Globally unique identifier (UID) for each tag.

Memory: EPC memory up to 128 bits, user memory (optional).

Security Features:

Tamper Evidence: EPC status change (intact, tampered) for immediate notification of security breach.

Seal Strength: Meets ISO17712 high-security requirements for tamper resistance.

Locking Mechanism: One-time use; irreversible locking ensures tamper-evident functionality.

Environmental Durability:

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +100°C

Weather Resistance: Designed for harsh outdoor conditions (rain, humidity, UV exposure).

Waterproof Rating: IP67 or higher for water and dust resistance.

Certifications:

ISO 17712: Certified for high-security sealing applications.

RoHS Compliant: Ensures environmentally friendly materials.

FCC/CE Compliance: Meets global standards for radio frequency emissions.

Applications:

Industries: Logistics, transportation, shipping, container management, luggage handling, express couriers.

Use Cases: Sea cargo, air cargo, transition boxes, shipping containers, and luggage security.

Customization Options:

Logo/Branding: Custom logos and serial numbers can be printed on the tag.

Color: Custom colors available for different industry or company needs.

Wire Length: Adjustable based on client requirements.

Three-State RFID Wire Seal

The Three-State RFID Wire Seal is an innovative security solution designed to protect and monitor high-value assets in industries like logistics, shipping, and transportation. Combining the strength of a 3.5mm thick wire with advanced UHF RFID technology, this seal provides both physical tamper resistance and real-time electronic tracking.

Its three-state EPC status feature allows users to quickly determine if the seal is intact, tampered with, or in transit. Each seal is equipped with a globally unique ID, ensuring that every item secured with it can be individually identified and tracked. This product is certified under ISO17712, meeting stringent international standards for high-security seals, making it ideal for securing containers, cargo, luggage, and transition boxes in challenging outdoor environments. Additionally, its cost-effective design offers businesses a reliable and affordable solution for managing and securing their assets in both sea and air transport.

Get in Touch Today

Benefits Of Three-State RFID Wire Seal:

Enhanced Security: Provides immediate tamper evidence through RFID technology and a unique global ID, ensuring secure cargo handling.

Real-Time Monitoring: UHF RFID allows long-range detection, enabling real-time tracking and status updates (intact, tampered, or in transit).

Cost-Effective: Offers high security at a low cost, making it an affordable solution for logistics, shipping, and cargo industries.

Durable Design: The rugged build, with a 3.5mm wire, ensures it withstands harsh outdoor conditions, ensuring reliable performance over time.

Versatile Applications:Suitable for a wide range of uses, including sea and air cargo, containers, luggage, and express couriers, enhancing operational efficiency across industries.

ISO17712 Certified: Meets international standards for high-security seals, providing assurance in secure transport and compliance with global regulations.

Unbreakable Security, Unmatched Visibility – Three-State RFID Wire Seal for Ultimate Asset Protection.

The unmatched security and clear status visibility offered by the Three-State RFID Wire Seal, ensuring assets remain secure and their condition transparent. It emphasizes the seal’s robust protection and tamper-evident features, ideal for dependable asset management.
