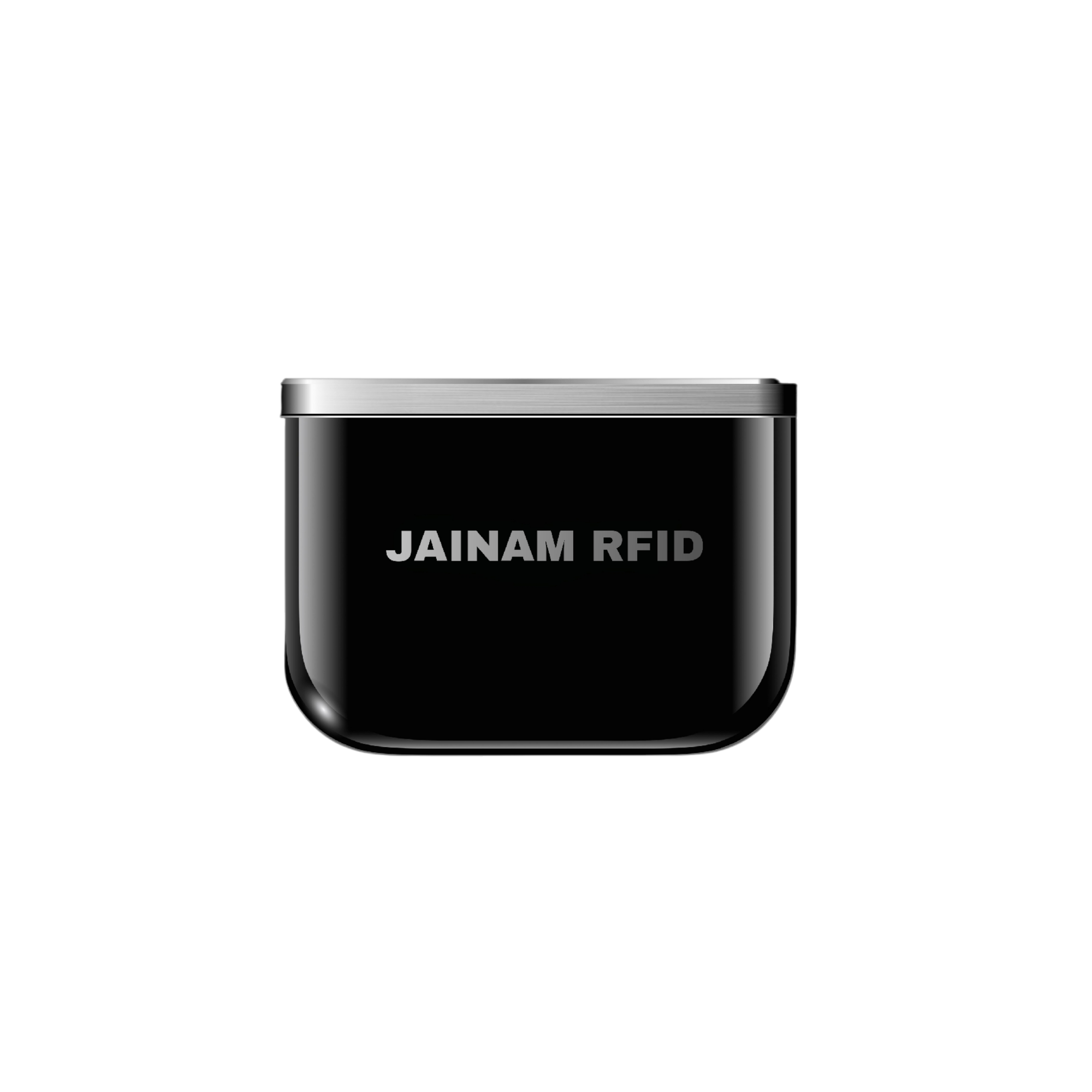

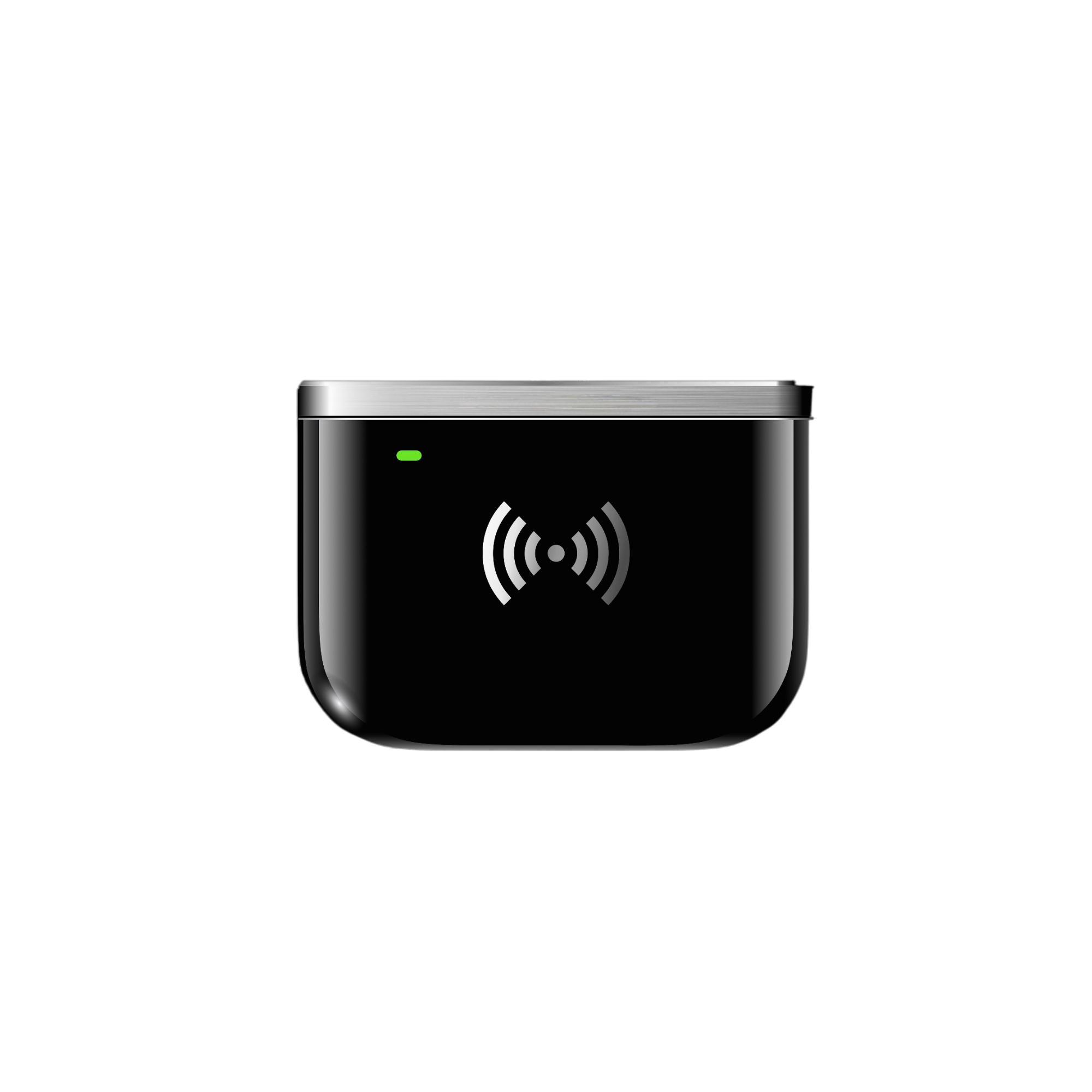

UHF RFID portable reader JNM A7

A7 (Xiaolingtong) is a small integrated UHF RFID reader: lightweight, compact, plug-and-play design, providing excellent performance and reliable integrated solutions. The reader is equipped with a UHF RFID reader chip independently developed by Guoxin IoT and integrates a single-feed ceramic RFID antenna. This high-performance, highly integrated reader IC integrates functions such as analog RF front-end and baseband digital signal processing module.

Users only need to provide power and communication interface (support Type C), and easily control the operation of the module through the API function library. Regardless of the application scenario, the RF-JNM A7 module can meet your application needs. RF-JNM A7 integrates the RF front end, controller and other circuits into a small module, which is easier to integrate into various devices and systems to achieve lightweight development.

NationalChip independently develops chips

Based on the dedicated UHF RFID chip independently developed by Guoxin IoT, it has strong scalability, stable performance and powerful functions.

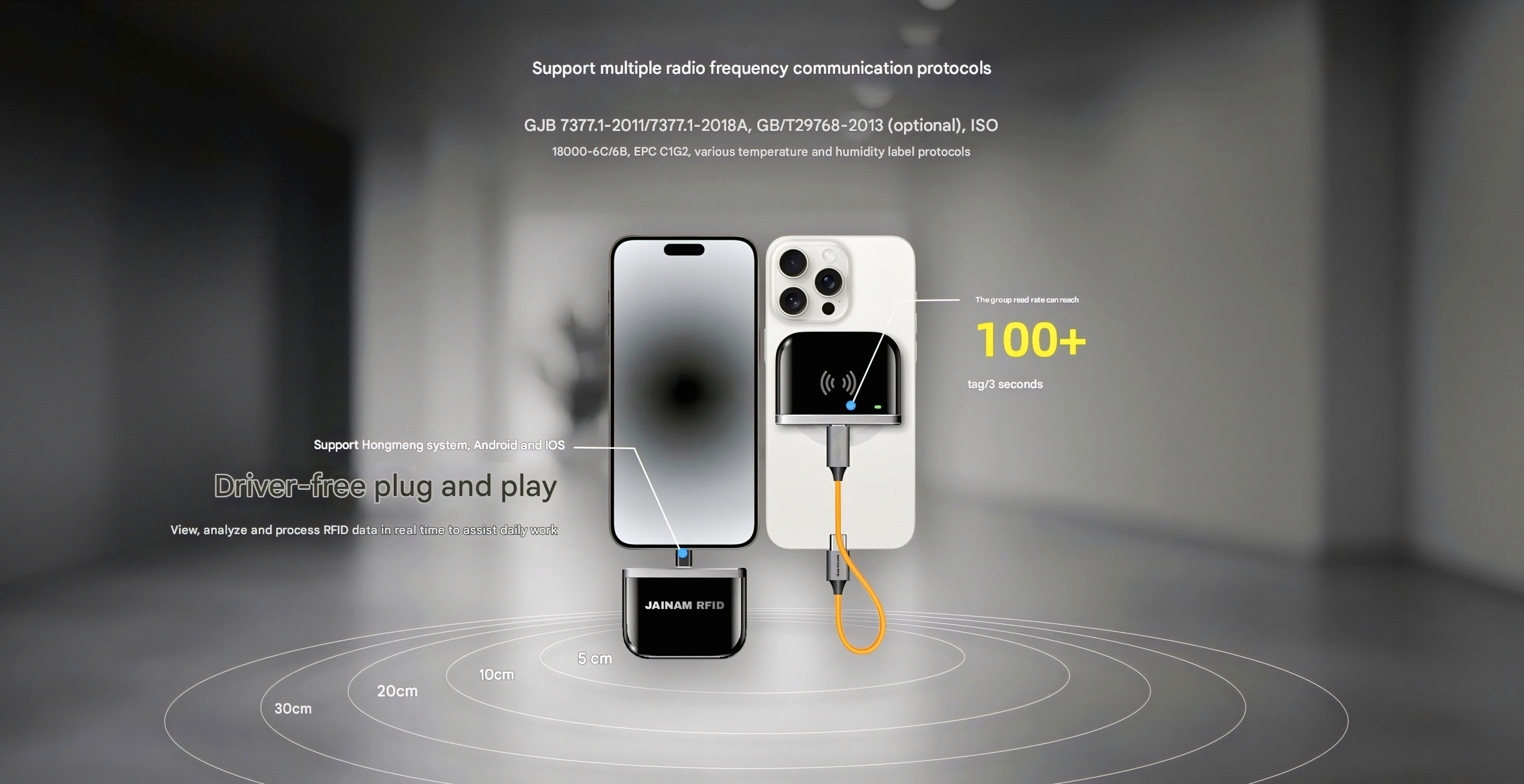

Support multiple RF communication protocols

GJB 7377.1-2011, GB/T29768-2013, IS0 18000-6C/6B and other protocols.

Driver-free direct connection

Support Hongmeng system, Android and IOS. No driver required, plug and play. Provide RFID Xiaolingtong applet and APP.

High performance intensive read

It adopts excellent reading and writing algorithms and architecture , suitable for application scenarios with high throughput and high tag density.

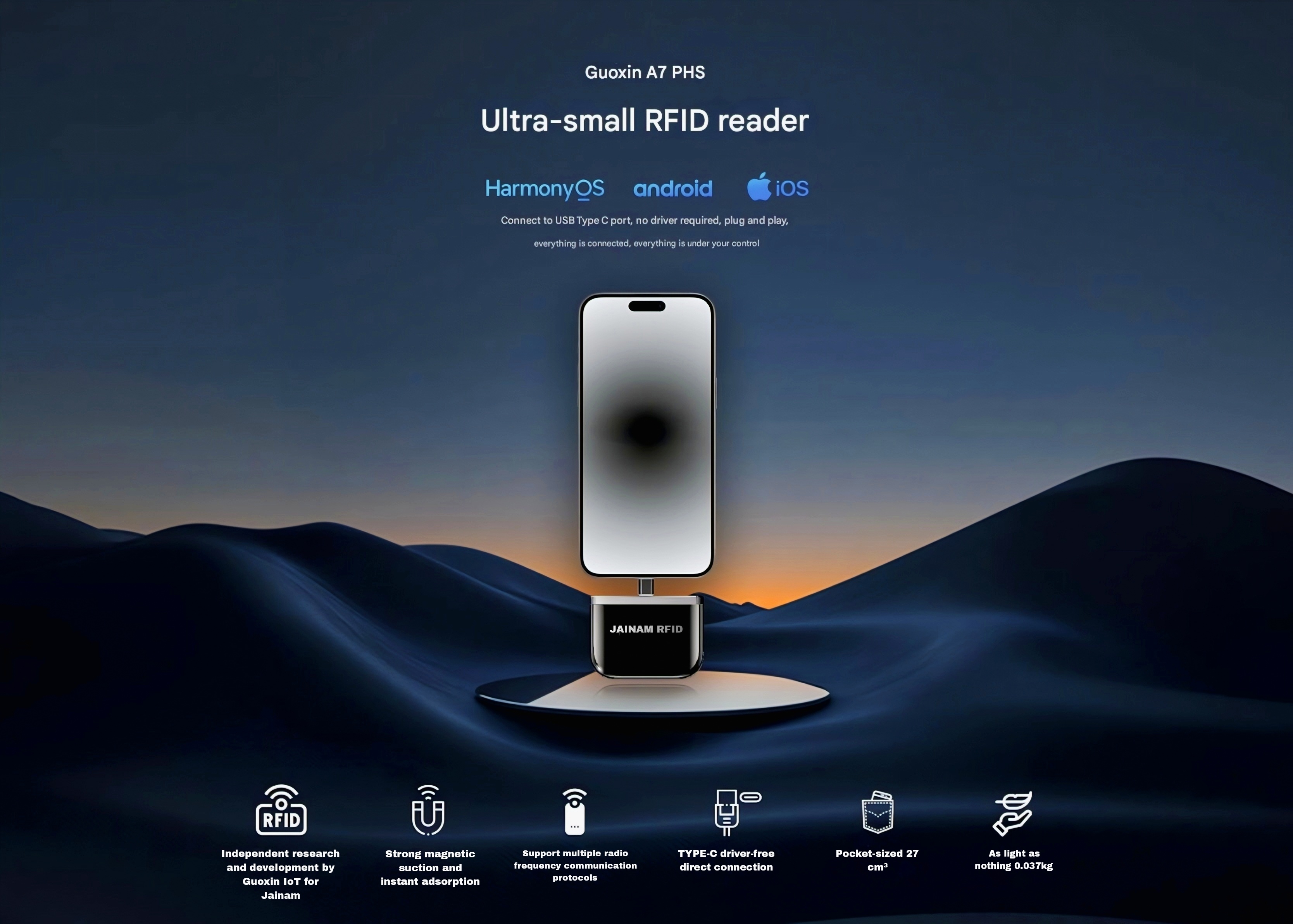

Support Hongmeng system, Android and IOS system

TYPE-C driver-free, plug and play

Professional UHF reading and writing

Data communication via USB

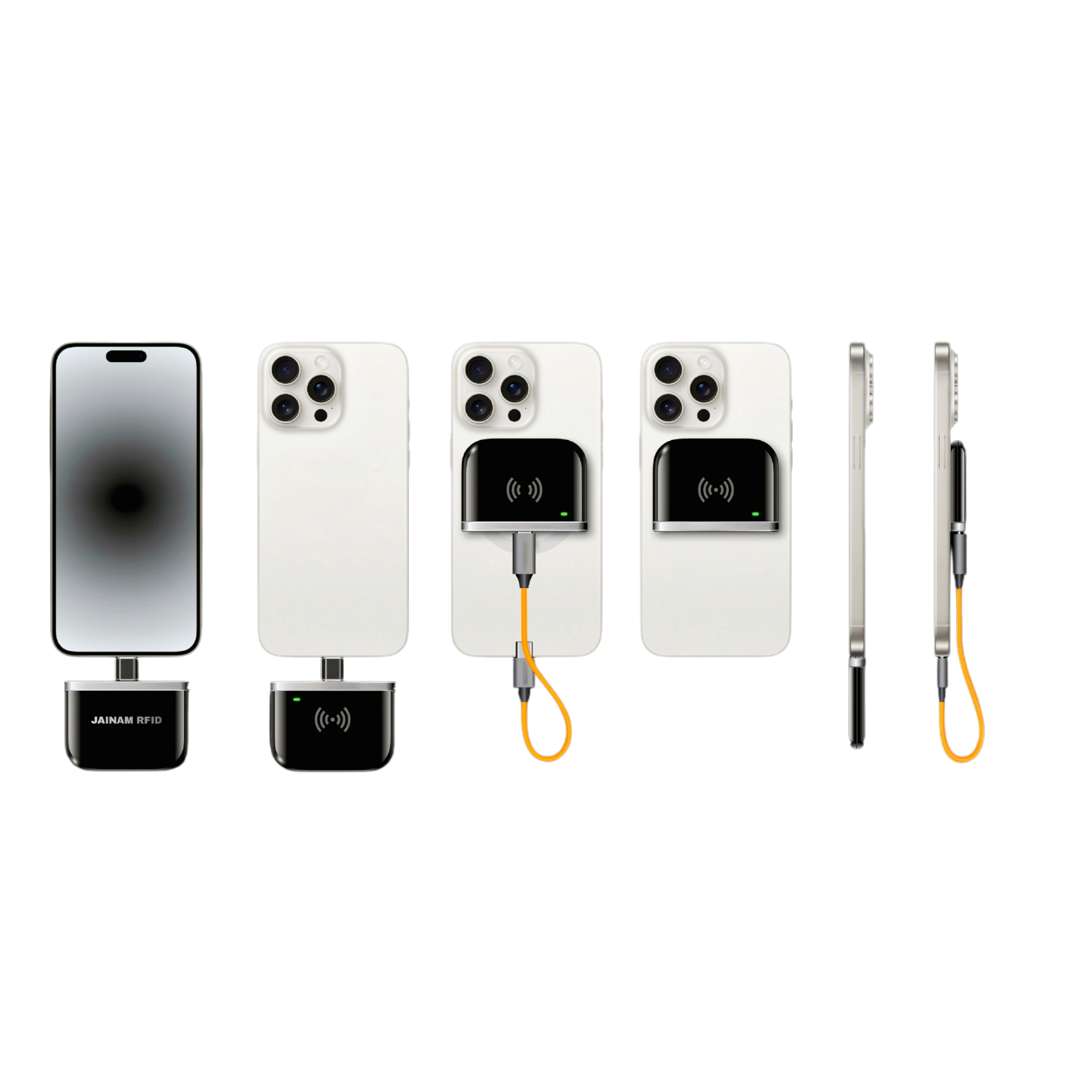

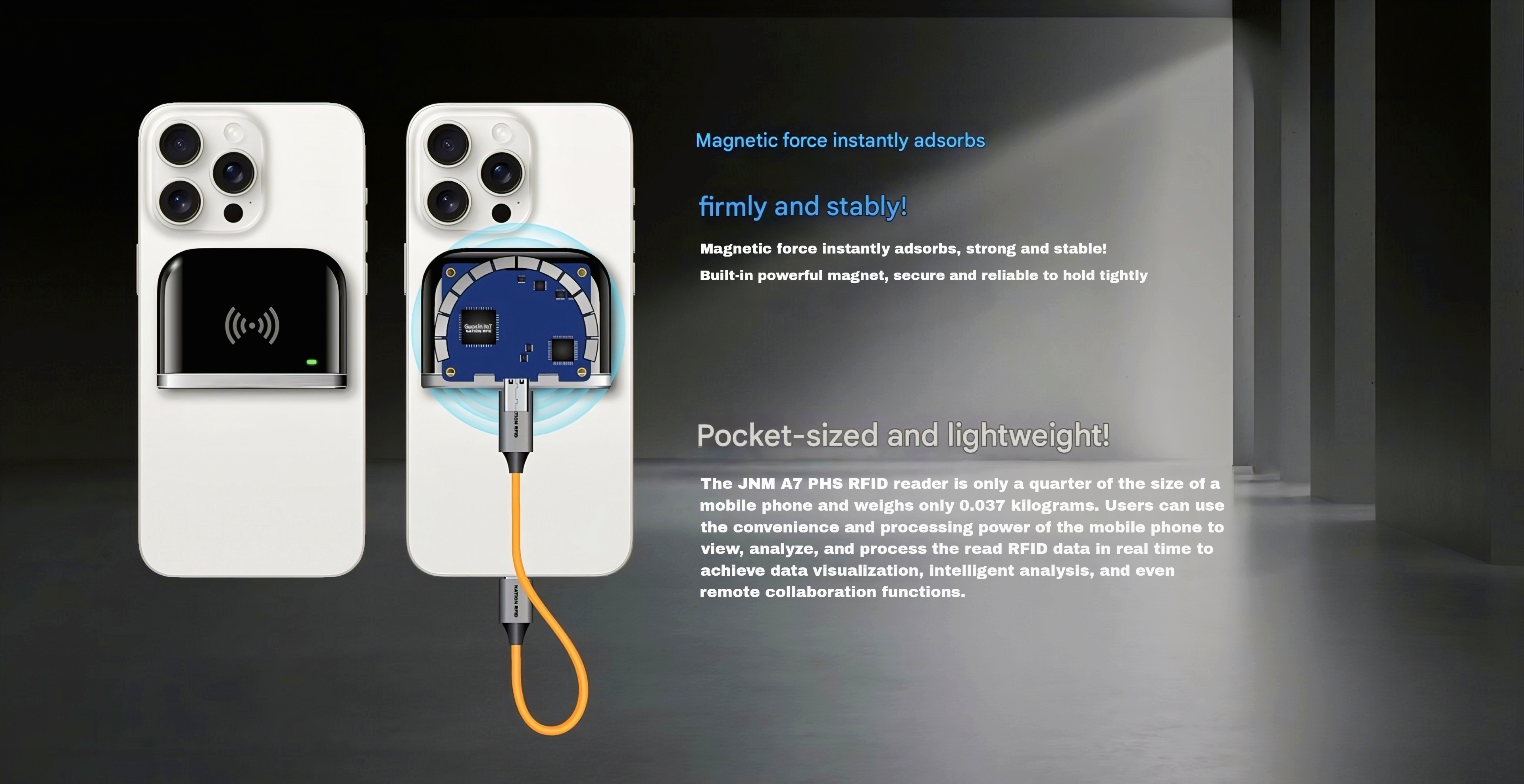

Strong magnetic attraction, instant adsorption

Support multiple RF communication protocols

Bluetooth 5.0

Pocket-sized, 27 cm³

As light as nothing 0.037kg

Energy and Utilities >

Providing solutions for high-performance energy and utility organizations to acquire, evaluate and share critical data in harsh environments.

Warehousing and logistics management >

Providing solutions for building an integrated, efficient and profitable supply chain to help you achieve transformational benefits.

Retail and chain applications >

Providing solutions for a seamless shopping experience empowers your team to deliver satisfying experiences to customers and improve frontline business performance.

Manufacturing and Automation >

Provide manufacturers with real-time information and intelligent solutions to shorten production cycles, reduce defects, improve work safety, and help improve work efficiency.

Smart medical and healthcare >

Provide solutions for medical rescue and research teams to improve the quality of nursing services through real-time access to patient data, important instrument tracking, inventory counting, etc.

Digital Finance and Assets >

Providing solutions for digital finance, identity authentication, asset tracking, payment management and other aspects enable financial institutions to effectively prevent risks, simplify processes and ensure the safe management of assets.

Physical Parameters

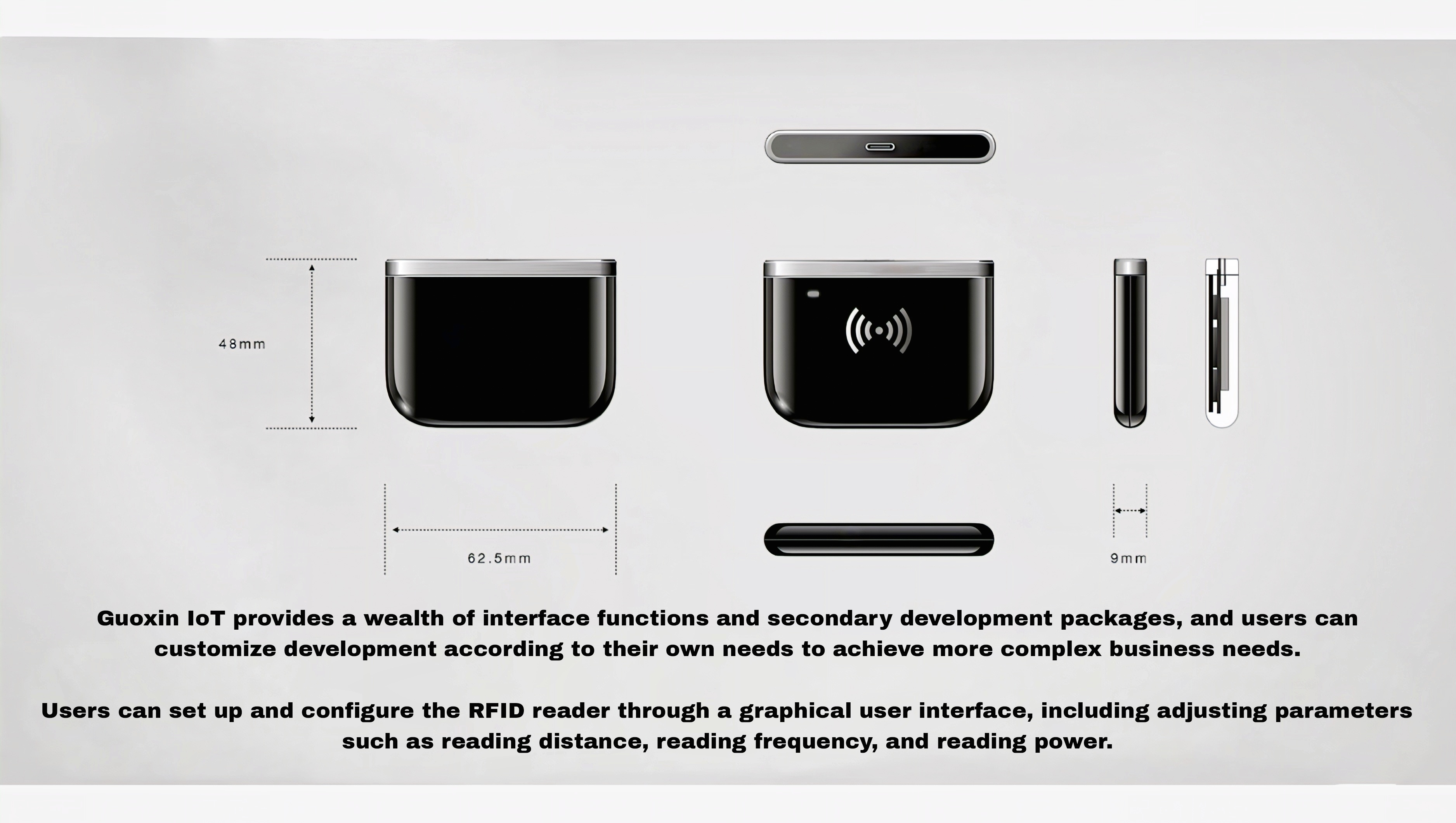

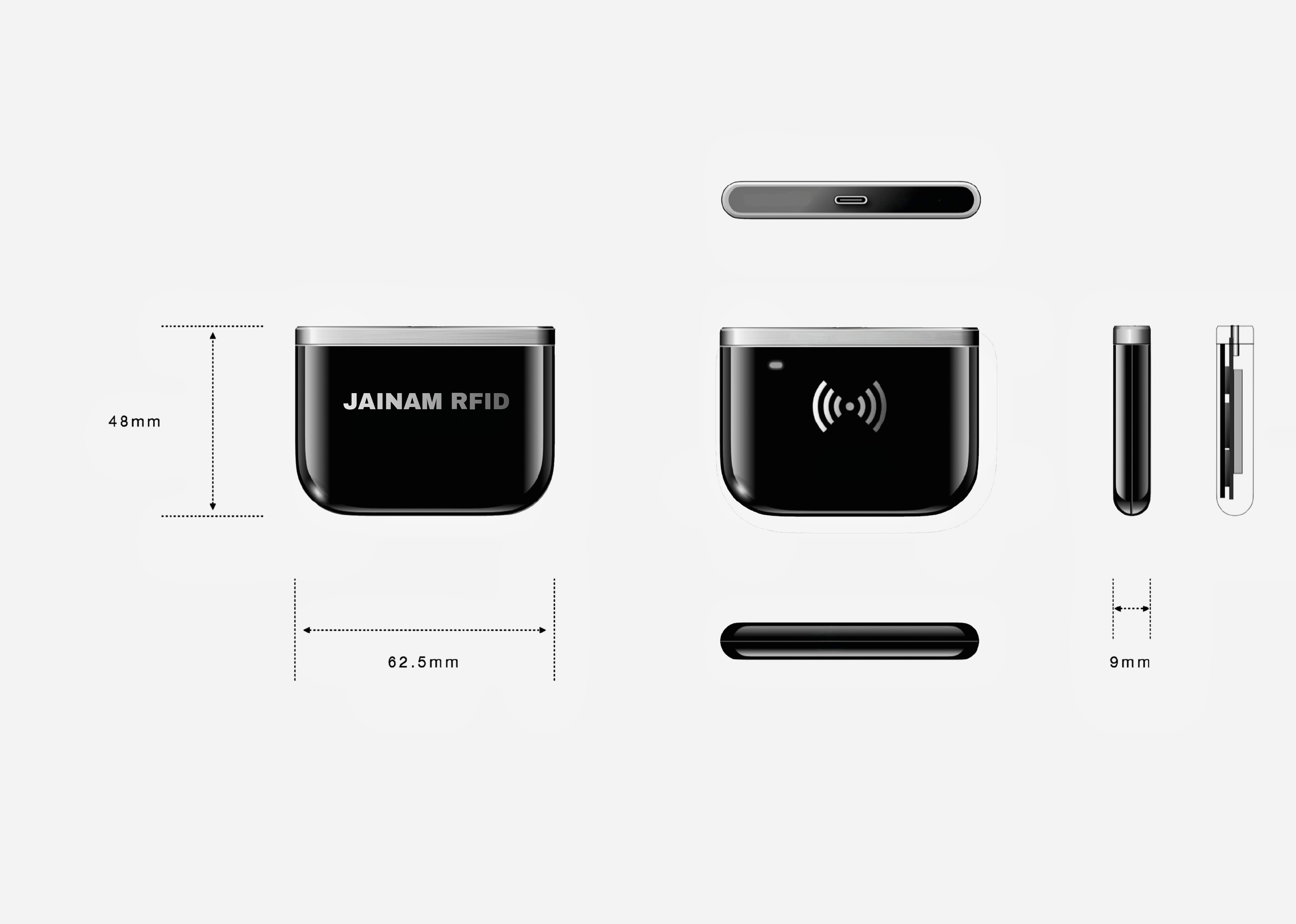

1	size	62.5mm×48.0mm×9.0mm.
2	weight	37g

Key Features
1	Air interface protocol	ISO 18000-6C/6B, EPC C1G2 GB/T 29768-2013 (optional) GJB 7377.1-2011/7377.1-2018A Various temperature and humidity label protocols
2	Communication interface	Type C, Bluetooth (optional)

Performance parameters
1	Operating frequency	902～928MHz.
2	RF Output Power	0～18dBm
3	Working Mode	Fixed frequency or frequency hopping optional
4	Forward modulation	PR-ASK, DSB-ASK
5	Decoding	FM0, Miller 2/4/8
6	Reading distance	0 ~ 0.3m (depending on configuration)
7	Writing distance	0 ~ 0.1m (depending on the configuration)
8	Tag recognition speed	>100 times/second
9	Multi-label processing	100 images/ 3 seconds
10	Baseband rate	40k, 160k, 320k, 400k
11	Power supply	Type C
12	Supply voltage (VCC)	+5.5V
13	Power consumption	1.2W @ +18dBm
